Pig Iron Portfolio

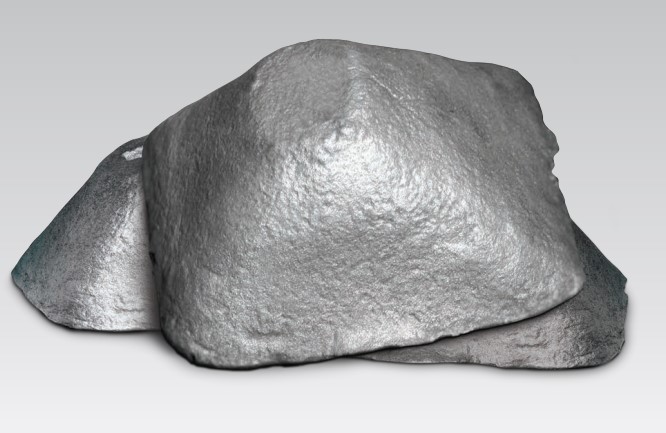

Niremet supplies specialised pig iron grades to support ductile, grey and steelmaking applications. Our nodular, basic and foundry pig irons are available in consistent ingot sizes for bulk handling.
All grades are supplied as 10–18 kg ingots without notches and shipped in bulk packaging unless otherwise specified.
Nodular Pig Iron
Used in the manufacture of ductile (nodular/SG) iron castings.
| Grade | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| NODULAR | 3.50–4.50% | 1.00% max | 0.05% max | 0.05% max | 0.015% max |
| NODULAR HP | 3.50–4.50% | 1.00% max | 0.04% max | 0.04% max | 0.010% max |
Standard size: 10–12 kg ingots.
Basic Pig Iron
Primarily used in electric arc furnace steelmaking.
| Grade | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| Low Mn | 3.50–4.50% | 1.20% max | 0.099% max | 0.08% max | 0.05% max |
| PL1 / PL2 | 3.50–4.50% | 0.60–1.20% | 0.40–0.80% | 0.08% max | 0.05% max |
Standard size: 10–18 kg ingots.

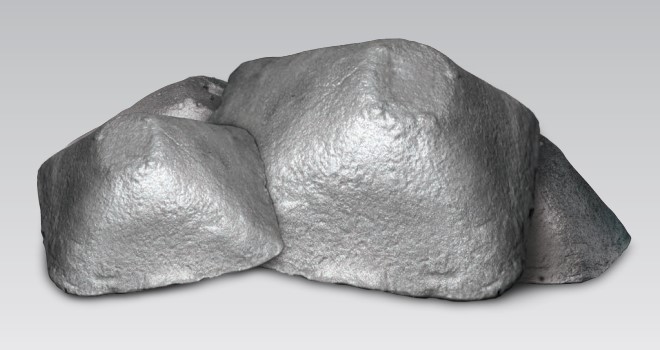

Foundry Pig Iron
Also known as hematite pig iron, used mainly for grey iron castings in cupola or induction furnaces.
| Grade | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| L1 | 3.50–4.50% | 3.20–3.60% | 0.40–0.80% | 0.08% max | 0.04% max |
| L2 | 3.50–4.50% | 2.80–3.20% | 0.40–0.80% | 0.08% max | 0.04% max |
| L3 | 3.50–4.50% | 2.40–2.80% | 0.40–0.80% | 0.08% max | 0.04% max |
| L4 | 3.50–4.50% | 2.00–2.40% | 0.40–0.80% | 0.08% max | 0.04% max |
| L5 | 3.50–4.50% | 1.60–2.00% | 0.40–0.80% | 0.08% max | 0.04% max |
| L6 | 3.50–4.50% | 1.20–1.60% | 0.40–0.80% | 0.08% max | 0.04% max |
| L5–L6 Low Mn | 3.50–4.50% | 1.00–2.00% | 0.099% max | 0.08% max | 0.04% max |
Standard size: 10–12 kg ingots.
